Description

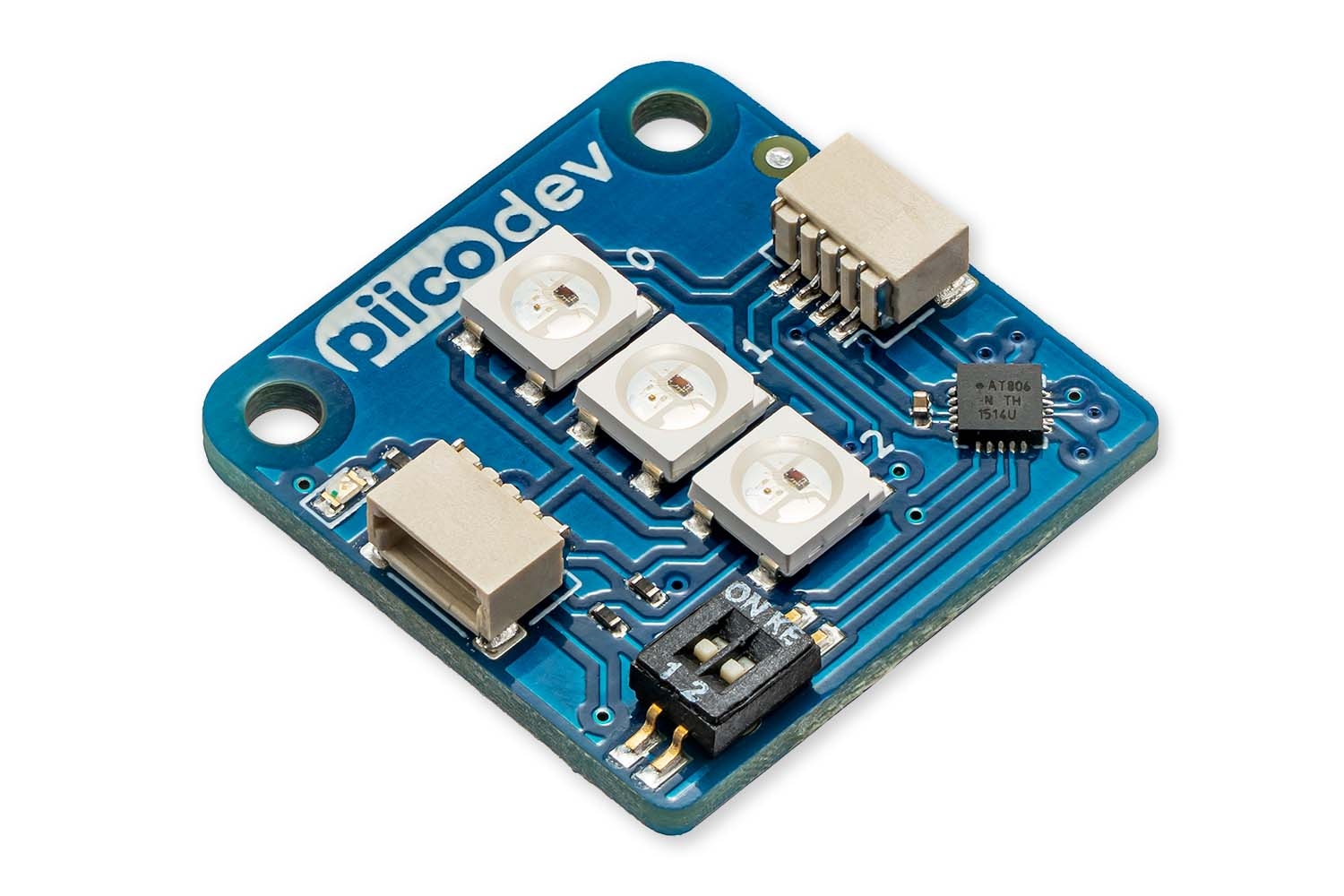

The PiicoDev 3x RGB LED Module provides three individually controllable RGB LEDs for status indicators, colour patterns and notifications. It is the exact output module named by the Meow Meow Scratch Pi RGB Notifier project.
Compatibility
- Connects to Raspberry Pi through the PiicoDev Adapter for Raspberry Pi and a PiicoDev cable.
- Runs at 3.3 V and uses I²C address 0x08 by default.
- Four ID switches provide addresses from 0x08 through 0x17, with software addressing also available.
- PiicoDev connectors are compatible with Qwiic and STEMMA QT at 3.3 V.
The onboard LEDs are bright; start at low brightness for desk and night-time indicators. Remove any protective film over the ID switch before changing its address.
Included here: LED module only. Raspberry Pi, adapter, cable and diffuser or enclosure are separate.
