Description

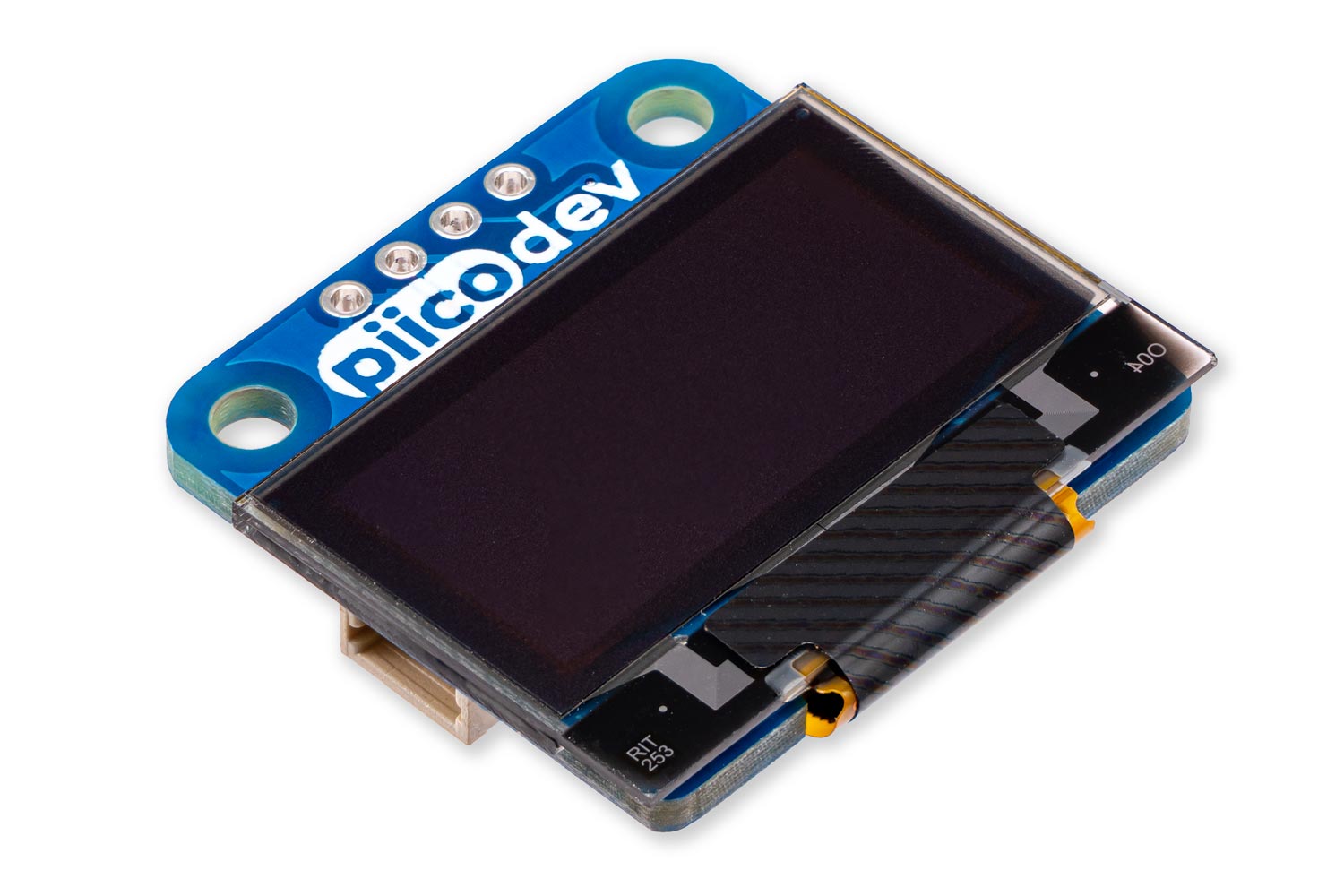

The PiicoDev OLED Display Module is a 128×64-pixel monochrome SSD1306 screen for text, shapes, plots and bitmap graphics. It is the exact display named by the Meow Meow Scratch Pi OLED Stats project.
Compatibility
- Connects to Raspberry Pi through the PiicoDev Adapter for Raspberry Pi and a PiicoDev cable.
- Runs at 3.3 V and uses I²C address 0x3C by default or 0x3D with the address switch.
- Supports two displays on one bus when each has a unique address.
- PiicoDev connectors are compatible with Qwiic and STEMMA QT at 3.3 V.
The effective display area is compact, so design status screens for legibility rather than dense dashboards. Remove any protective film from the display before judging image clarity.
Included here: OLED module only. Raspberry Pi, adapter and cable are separate.
